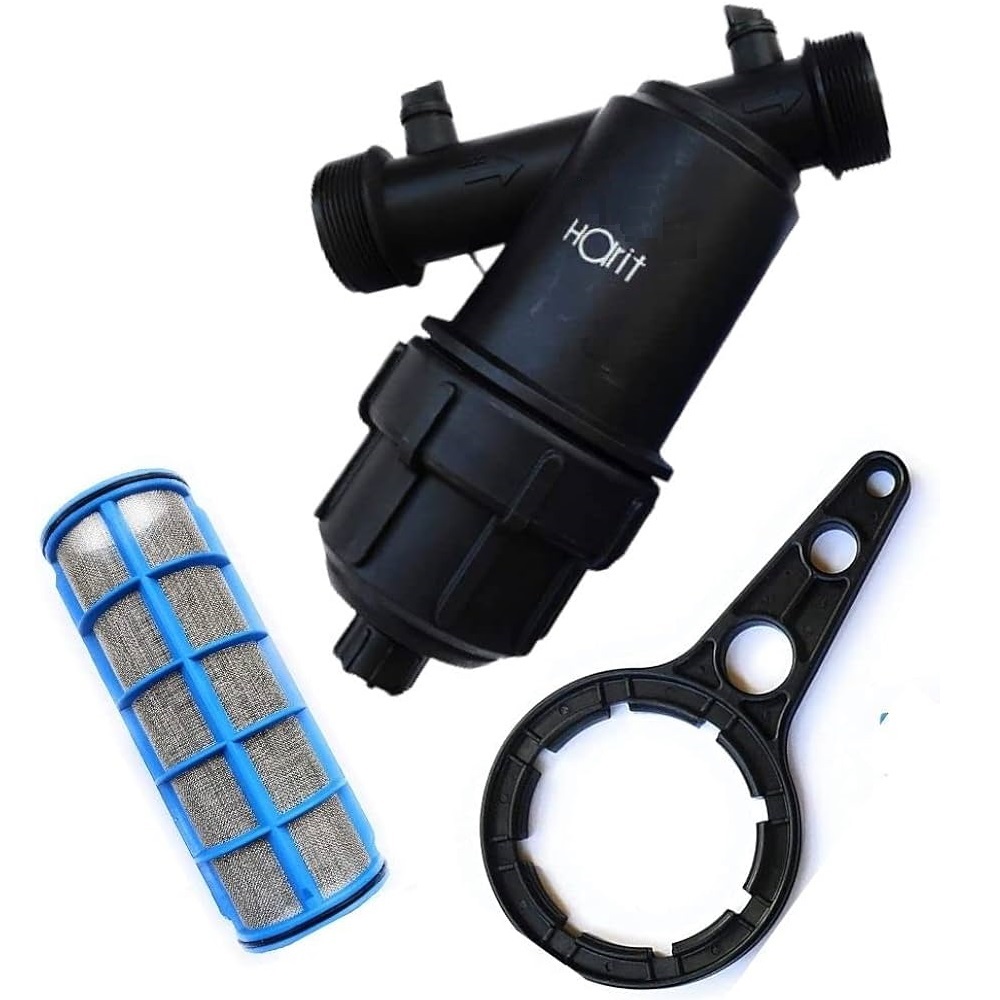

Automat Harit 2" Screen Filter 20m3/h (Y-Type) - HT124YS
- Rating
- 0 Reviews
- In stock
₹ 1,473
(Incl. GST) Shipping charge calculated at checkout
For bulk orders or B2B inquiries, email us: oliasiafoods@gmail.com
SKU # ATMT.IRPD.HT124YS
Brand :
Pincode :
Estimated delivery time : 3 to 7 working days
Loading...
Product Specifications
| Model | HT-124YS |
| Inlet/Outlet Connection | 2" (50 mm) BSP male threaded |
| Filtration Area | 295 cm2 |
| Nominal flowrate | 20 m3/hr |
| Filtration degrees | 120 mesh (100 micron) |
| Nominal pressure | 2 kg/cm2 |
| Max. working pressure | 6 Kg/cm2 |
| Filtering cartridge material | 304 Grade Stainless Steel |
| Body material | Reinforce Polypropylene |
| Drain connection size | 3/4" BSP male threaded |
Automat - Harit 2” Y-Type Screen filter (20m3) in which flow passes through inside to outside of screen cartridge. Uniform distribution of flow into filter housing optimize filtration process. Screen cartridge with double screen (30 & 120) Stainless Steel (SS 316) is used for rust prevention. Filter designed for maximum operating pressure of 6 Bar.
| Model | HT-124YS |
| Inlet/Outlet Connection | 2" (50 mm) BSP male threaded |
| Filtration Area | 295 cm2 |
| Nominal flowrate | 20 m3/hr |
| Filtration degrees | 120 mesh (100 micron) |
| Nominal pressure | 2 kg/cm2 |
| Max. working pressure | 6 Kg/cm2 |
| Filtering cartridge material | 304 Grade Stainless Steel |
| Body material | Reinforce Polypropylene |
| Drain connection size | 3/4" BSP male threaded |
