Model | SA65 |
Inlet/Outlet | 1/2 inch BSP |
Length | 6 inch |
Operating pressure | Up to 80 psi (5.5 bar) |
Surge pressure | Up to 240 psi (15.5 bar) |
Maximum flow | 30 Ltr/min |
Temperature | Up to 110° F (43° C) |

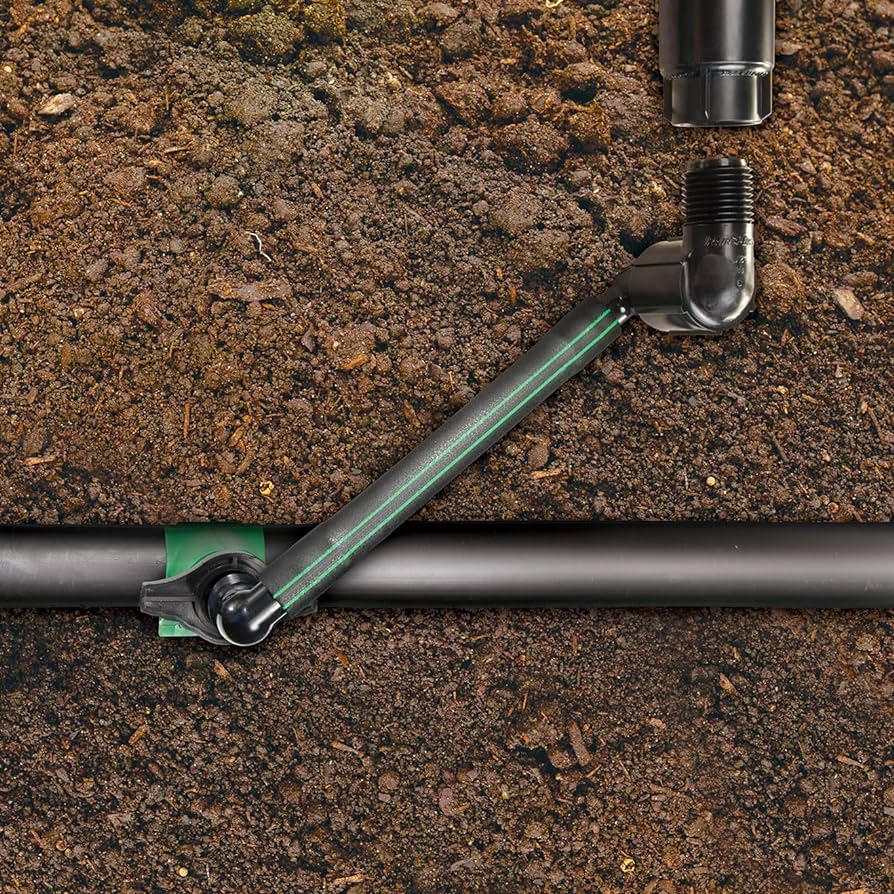

Rain Bird swing pipe assembly allows easy parallel connection of sprinkler heads to main irrigation line. Swing motion allows for easy and accurate depth setting of the sprinkler head. Minimizes overall system depth underground. This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.
Model | SA65 |
Inlet/Outlet | 1/2 inch BSP |
Length | 6 inch |
Operating pressure | Up to 80 psi (5.5 bar) |
Surge pressure | Up to 240 psi (15.5 bar) |
Maximum flow | 30 Ltr/min |
Temperature | Up to 110° F (43° C) |
