Rain Bird 5004-PL-PRS-SAM Rotor Popup Sprinkler 30 to 50 feet Radius - Y65650
- Rating
- 0 Reviews
- In stock
₹ 1,350
( 1,760)
23% off
(Incl. GST) Shipping charge calculated at checkout
For bulk orders or B2B inquiries, email us: oliasiafoods@gmail.com
SKU # RNBD.IRPD.Y65650
Brand :
Pincode :
Estimated delivery time : 3 to 7 working days
Loading...
Product Specifications
| Model | 5004PRSPCSAM |
| Inlet | 3/4 inch BSP female bottom threaded inlet |
| Coverage Radius | 25 to 50 feet (7.6 to 15.2 Mtr) |
| Pressure | 25-65 psi (1.7 to 4.5 bar) |
| Flow rate | 4.2 to 36.6 Ltr/min |
| Arc | Adjustable arc from 40° - 360° Reversing Full and Part-Circle |
| Features | Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance. |
| Extra Features | Gear Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles. |

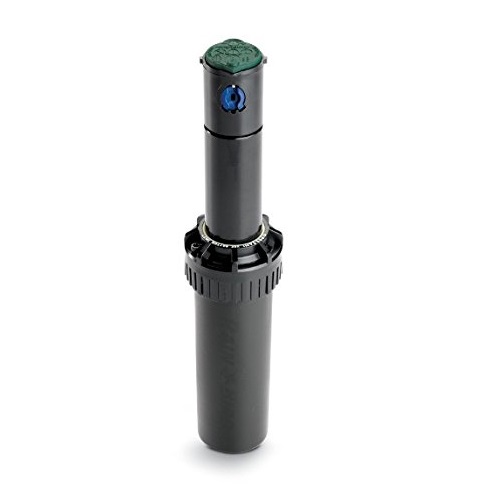

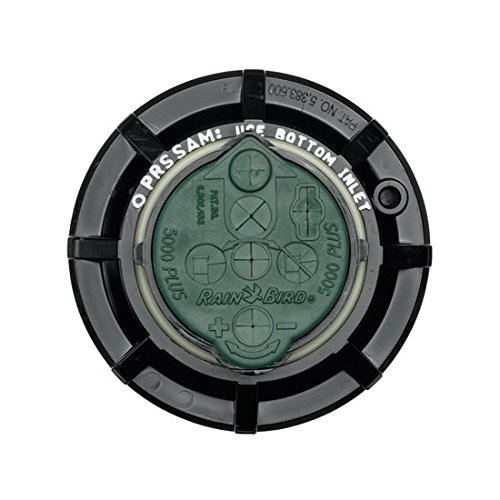

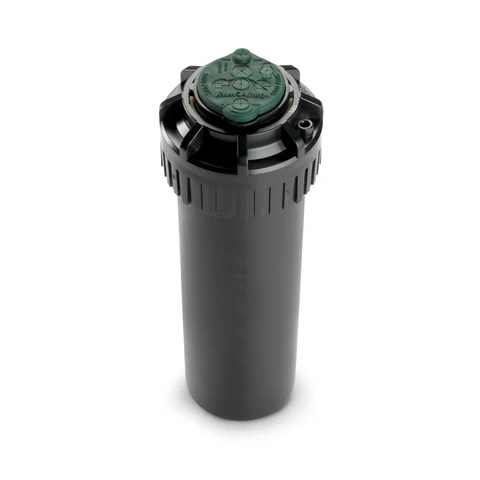

5004PRSPCSAM is a 5000 Series Part-Circle Pattern 4 inch popup height Rotor with PRS Pressure Regulation and Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage. The Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance. Faster maintenance with a new self-cleaning arc adjustment screw. Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction.
| Model | 5004PRSPCSAM |
| Inlet | 3/4 inch BSP female bottom threaded inlet |
| Coverage Radius | 25 to 50 feet (7.6 to 15.2 Mtr) |
| Pressure | 25-65 psi (1.7 to 4.5 bar) |
| Flow rate | 4.2 to 36.6 Ltr/min |
| Arc | Adjustable arc from 40° - 360° Reversing Full and Part-Circle |
| Features | Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance. |
| Extra Features | Gear Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles. |
