Model | 6504 Falcon |
Radius | 39 to 65 feet (11.9 to 19.8 mtr) |
Pressure | 30 to 90 psi (2.1 to 6.2 Bars) |
Flow Rate | 0.66 to 4.93 m3/hr (10.8 to 82.2 ltr/min) |
Inlet | 1" female BSP threaded bottom inlet |
Overall height | 8.5 inch (21.6 cm) |
Pop-up height | 4 inch (10.2 cm) |
Arc adjustment | from 40° to 360° part-circle, 360° non-reversing full-circle |
Feature | SAM check device holds up to 10 feet (3.1 m) of elevation change |

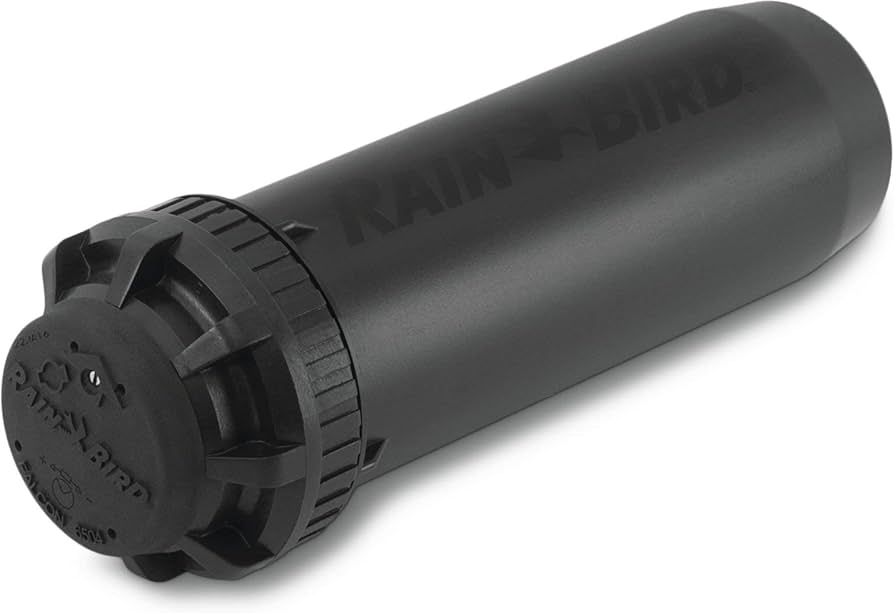

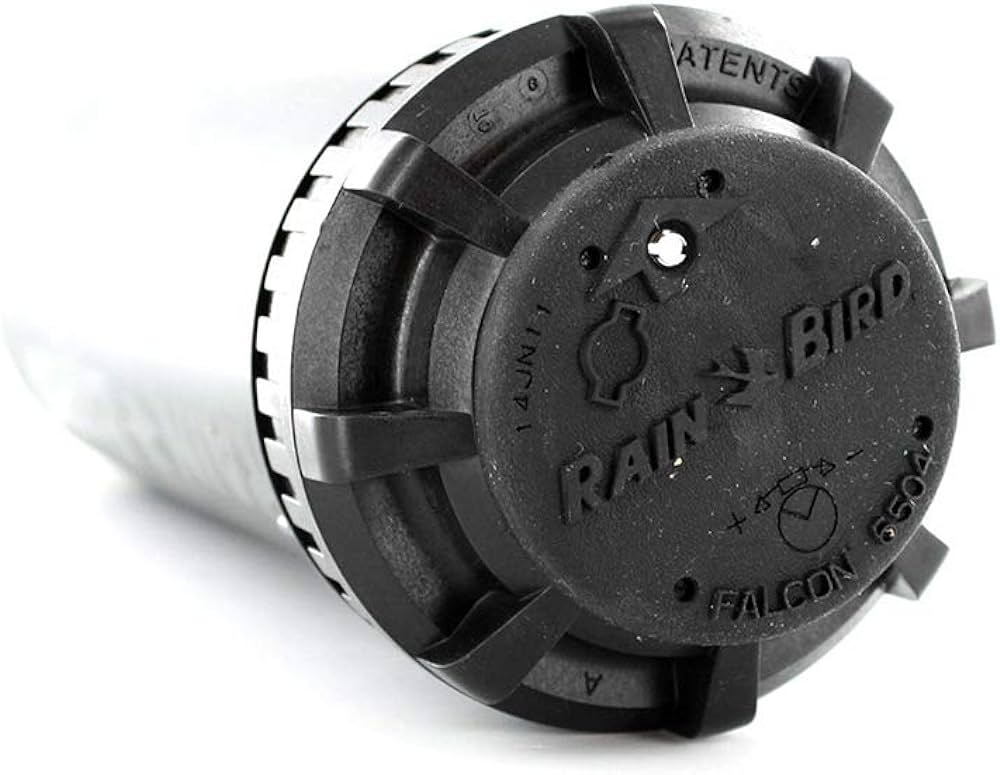

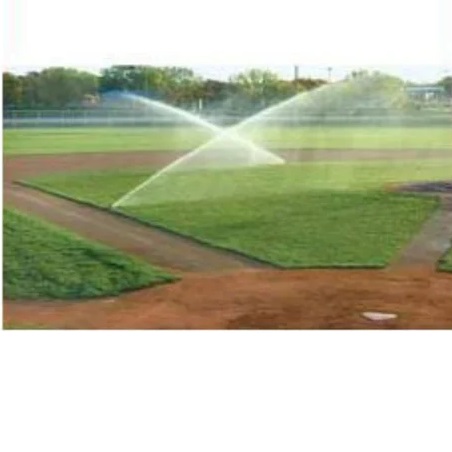

Rain Bird Falcon 6504 rotor popup sprinkler is ideal for large turf sites such as parks, athletic fields, cemeteries, schools and commercial sites with spacing up to 65 feet (19.8 mtr). Patented Rain Curtain™ nozzles have three ports for optimal long-range, mid-range, and close-in watering, for green grass even in the heat of summer. Nozzles are interchangeable from the front with no special tools. Self-adjusting stator does not require replacement when changing nozzles. Radius adjustment screw allows radius reduction up to 25% without changing nozzles. Small 2" (5.1 cm) exposed diameter reduces possibility of injury in play areas. Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction. 4" (10.2 cm) pop-up height to center line of nozzle clears taller turfgrass. Water-lubricated gear drive for reliable, durable rotation. Removable Seal-A-Matic™ (SAM) check device prevents puddling and erosion caused by low-head drainage
Visit for more information : https://store.rainbird.com/shop
Model | 6504 Falcon |
Radius | 39 to 65 feet (11.9 to 19.8 mtr) |
Pressure | 30 to 90 psi (2.1 to 6.2 Bars) |
Flow Rate | 0.66 to 4.93 m3/hr (10.8 to 82.2 ltr/min) |
Inlet | 1" female BSP threaded bottom inlet |
Overall height | 8.5 inch (21.6 cm) |
Pop-up height | 4 inch (10.2 cm) |
Arc adjustment | from 40° to 360° part-circle, 360° non-reversing full-circle |
Feature | SAM check device holds up to 10 feet (3.1 m) of elevation change |
Irrigation Valve Box enable the integration of valve assemblies or other elements into underground systems where easy access is required. Circular and rectangular valve boxes with snap-fit, twist-lock, and screw-on covers. Size variation like 6 inch, 8 inch, 9 inch, 10 inch in round shape and 12 inch, 18 inch in rectangular shape.
