Model | 8005 |
Radius | 39 to 81 feet (11.9 to 24.7 mtr) |
Pressure | 50 to 100 psi (3.5 to 6.9 Bars) |
Flow Rate | 0.86 to 8.24 m3/hr (14.4 to 137.4 ltr/min) |
Inlet | 1" BSP female threaded bottom inlet |
Overall height | 10.1/8 inch (25.7 cm) |
Pop-up height | 5 inch (12.7 cm) |
Arc adjustment | from 50° to 330° part-circle, 360° non-reversing full-circle |
Feature | SAM check device holds up to 10 feet (3.1 m) of elevation change, Rain Curtain™ Nozzles: Included |
Overall diameter | 3.1/8 inch (7.9 cm) |

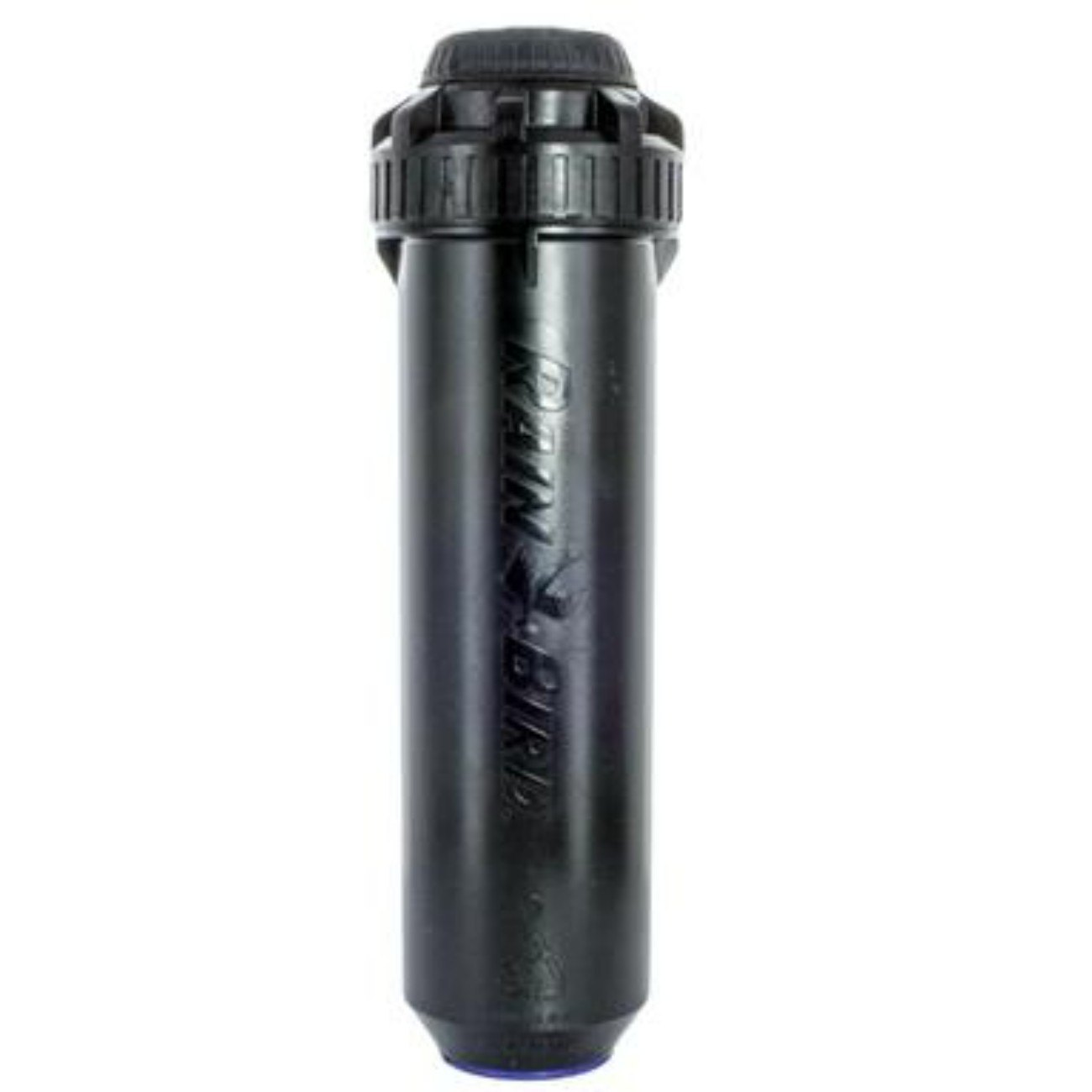

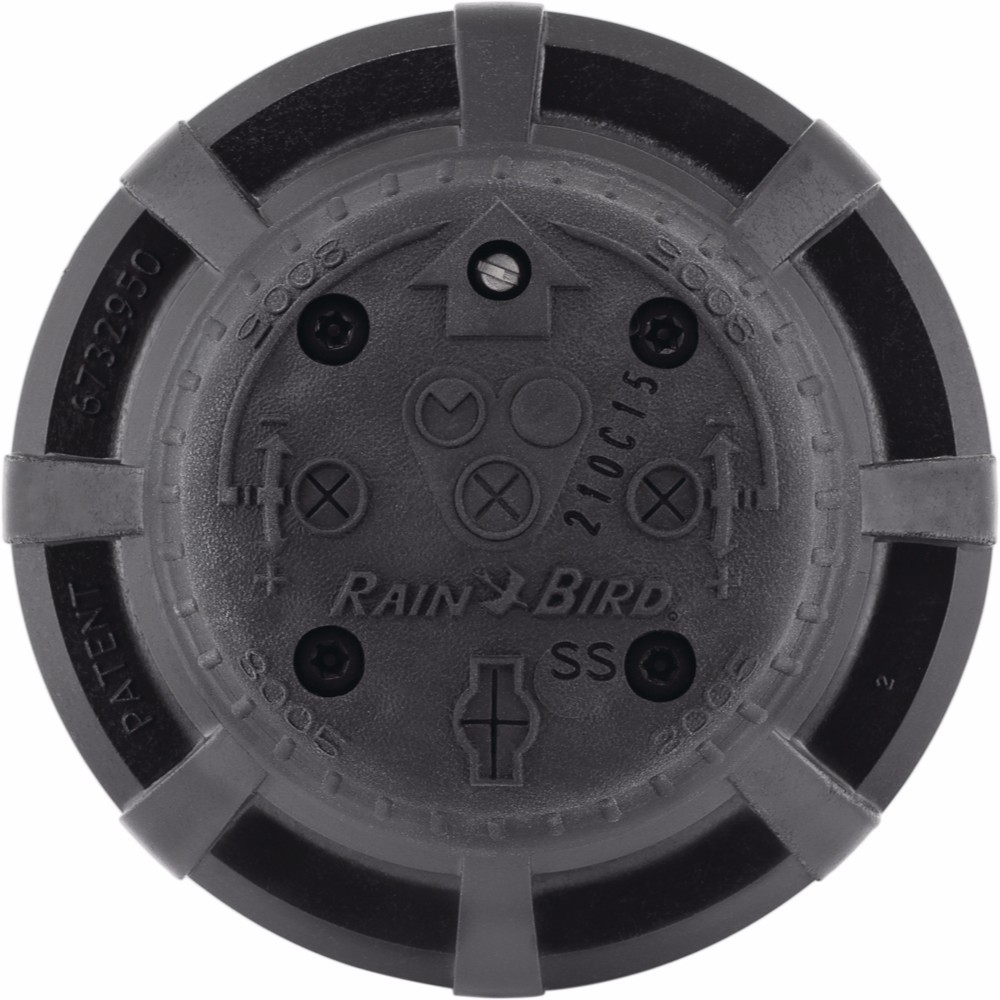

Rain Bird 8005 rotor popup sprinkler is ideal for large turf sites such as parks, athletic fields, cemeteries, schools and commercial sites with spacing up to 81 feet (24.7 mtr). Patented Rain Curtain™ nozzles have three ports for optimal long-range, mid-range, and close-in watering, for green grass even in the heat of summer. Nozzles are interchangeable from the front with no special tools. Self-adjusting stator does not require replacement when changing nozzles. Radius adjustment screw allows radius reduction up to 25% without changing nozzles. Small 2" (5.1 cm) exposed diameter reduces possibility of injury in play areas. Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction. 4" (10.2 cm) pop-up height to center line of nozzle clears taller turfgrass. Water-lubricated gear drive for reliable, durable rotation. Removable Seal-A-Matic™ (SAM) check device prevents puddling and erosion caused by low-head drainage
Model | 8005 |
Radius | 39 to 81 feet (11.9 to 24.7 mtr) |
Pressure | 50 to 100 psi (3.5 to 6.9 Bars) |
Flow Rate | 0.86 to 8.24 m3/hr (14.4 to 137.4 ltr/min) |
Inlet | 1" BSP female threaded bottom inlet |
Overall height | 10.1/8 inch (25.7 cm) |
Pop-up height | 5 inch (12.7 cm) |
Arc adjustment | from 50° to 330° part-circle, 360° non-reversing full-circle |
Feature | SAM check device holds up to 10 feet (3.1 m) of elevation change, Rain Curtain™ Nozzles: Included |
Overall diameter | 3.1/8 inch (7.9 cm) |
